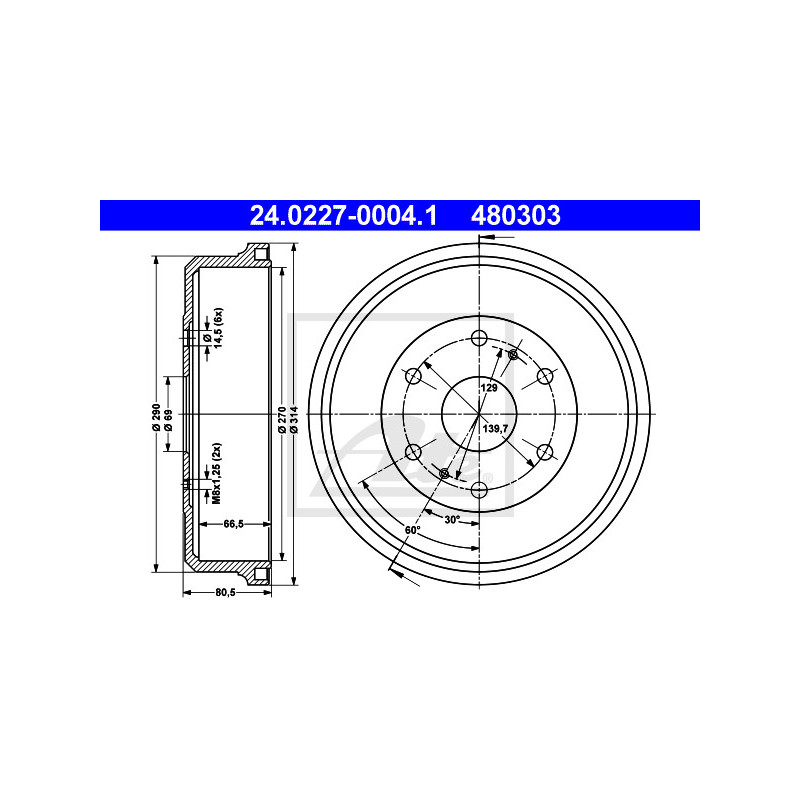

Tambour de frein ATE

Tambour de frein ATE
Réf : 24.0227-0004.1
En cours de réapprovisionnement
expédition aujourd'hui
  • Nombre de trous6
  • Alésage-Ø [mm]14,5
  • MAPP-Code existant
  • Haut.int.tamb.fr. [mm]66,5
  • Haut.tot.tamb.fr. [mm]80,5
  • Diamètre réception [mm]69,0
  • Cercle de percage -Ø [mm]139,7
  • Diamètre extérieur du tambour de frein [mm]314,0
  • Diamètre intérieur du tambour de frein [mm]270,0
  • Cotes max.de rectification de tambour de frein [mm]272,0
168,00 €
TTC

20% taxe inclue

Frais de livraison exclus

Rupture de stock

Paiement sécurisé
Garantie 2 ans
Retours jusqu'à 30 jours

Paiement

Carte bancaire PayPal Virement

Livraison

Référenceséquivalentes

Réf : BF505 (Tambour de frein) 137,00 €
Réf : ADT34716 (Tambour de frein) 150,00 €
Réf : 24.0227-0004.1 (Tambour de frein) 168,00 €

Référence constructeurd'origine - OEM

Le(s) numéro(s) de référence OEM comparable(s) avec le numéro de la pièce originale

  • 42431-26100 - TOYOTA
  • 42431-26181 - TOYOTA
  • 42431-26180 - TOYOTA

Compatibilité avec lesvoitures personnelles

  • TOYOTA HIACE IV Autobus/Autocar (_H1_) 2.0 (RZH102, RZH112) (Année de construction 01-08-1989 - 01-04-1998, 101 CH, Essence)
  • TOYOTA HIACE IV Fourgon (_H1_) 2.4 (RZH103, RZH113) (Année de construction 01-08-1989 - 01-07-1998, 116 CH, Essence)
  • TOYOTA HIACE IV Autobus/Autocar (__H1_, __H2_) 2.4 D (LXH12, LXH22) (Année de construction 01-08-1995 - 01-08-2001, 79 CH, Diesel)
  • TOYOTA HIACE IV Fourgon (__H1_, __H2_) 2.4 (RZH10) (Année de construction 01-08-1995 - 01-08-2004, 120 CH, Essence)
  • TOYOTA HIACE IV Fourgon (__H1_, __H2_) 2.4 D (LXH12, LXH22) (Année de construction 01-08-1995 - 01-08-2001, 75 CH, Diesel)
  • TOYOTA HIACE IV Autobus/Autocar (__H1_, __H2_) 2.4 D (LXH12) (Année de construction 01-08-1995 - 01-08-2001, 75 CH, Diesel)
  • TOYOTA HIACE IV Fourgon (__H1_, __H2_) 2.4 D (LXH12, LXH22) (Année de construction 01-08-1995 - 01-08-2001, 83 CH, Diesel)
  • TOYOTA HIACE IV Autobus/Autocar (__H1_, __H2_) 2.4 D (LH102, LH112, LH114, LXH12, LXH22) (Année de construction 01-08-1995 - 01-08-2001, 83 CH, Diesel)
  • TOYOTA HIACE IV Fourgon (__H1_, __H2_) 2.4 TD (LXH12, LXH22) (Année de construction 01-08-1995 - 01-08-2001, 90 CH, Diesel)
  • TOYOTA HIACE IV Fourgon (__H1_, __H2_) 2.4 D (LXH12, LXH22) (Année de construction 01-08-1995 - 01-08-2001, 79 CH, Diesel)
  • TOYOTA HIACE IV Fourgon (__H1_, __H2_) 2.4 (RCH12, RCH22) (Année de construction 01-08-1995 - 01-11-2003, 116 CH, Essence)
  • TOYOTA HIACE IV Autobus/Autocar (__H1_, __H2_) 2.4 (RCH12, RCH22) (Année de construction 01-08-1995 - 01-04-1998, 115 CH, Essence)
  • TOYOTA HIACE IV Autobus/Autocar (__H1_, __H2_) 2.4 TD (LXH12, LXH22) (Année de construction 01-08-1995 - 01-08-2001, 90 CH, Diesel)
  • TOYOTA HIACE IV Autobus/Autocar (__H1_, __H2_) 2.7 (RCH13, RCH23) (Année de construction 01-04-1998 - 01-11-2001, 143 CH, Essence)
  • TOYOTA HIACE IV Fourgon (__H1_, __H2_) 2.7 (RCH13, RCH23) (Année de construction 01-04-1998 - 01-06-2005, 143 CH, Essence)
  • TOYOTA HIACE IV Autobus/Autocar (__H1_, __H2_) 2.7 (RCH13, RCH23) (Année de construction 01-07-1998 - 01-12-2006, 144 CH, Essence)
  • TOYOTA HIACE V Fourgon (TRH2__, KDH2__, LH2__, GDH2__) 2.5 D-4D (KDH20_, KDH21_, KDH22_, KDH200, KDH220) (Année de construction 01-06-2004 - 01-01-0000, 102 CH, Diesel)
  • TOYOTA HIACE IV Autobus/Autocar (__H1_, __H2_) 2.5 D-4D (KLH12, KLH22) (Année de construction 01-08-2006 - 01-12-2012, 117 CH, Diesel)
  • TOYOTA HIACE / COMMUTER V Autobus/Autocar (TRH2__, KDH2__, LH2__, G 2.5 D-4D (KDH202) (Année de construction 01-09-2006 - 01-01-0000, 102 CH, Diesel)
  • TOYOTA HIACE IV Autobus/Autocar (__H1_, __H2_) 2.5 D-4D (KLH12, KLH22) (Année de construction 01-09-2006 - 01-12-2012, 95 CH, Diesel)
  • TOYOTA HIACE V Fourgon (TRH2__, KDH2__, LH2__, GDH2__) 2.5 D-4D (Année de construction 01-09-2006 - 01-01-0000, 95 CH, Diesel)
  • TOYOTA HIACE IV Fourgon (__H1_, __H2_) 2.5 D-4D (KLH12, KLH22) (Année de construction 01-09-2006 - 01-12-2012, 117 CH, Diesel)
  • TOYOTA HIACE IV Fourgon (__H1_, __H2_) 2.5 D-4D (KLH12, KLH22) (Année de construction 01-09-2006 - 01-12-2012, 95 CH, Diesel)
  • TOYOTA HIACE IV Fourgon (__H1_, __H2_) 2.5 D-4D (KLH12, KLH22) (Année de construction 01-09-2006 - 01-12-2012, 95 CH, Diesel)
